This is example of download file using streaming using spring framework. So many time user want to download large file at that time instead of direct download file it better option to provide steaming. In steaming server is writing file and brawler is downloading file parallel, server send file in chunk.

Technology Used:

  1. String 4.3.0
  2. Maven 2.3.2
  3. Tomcat 7
  4. Java 8
  5. IntelljIDEA 14

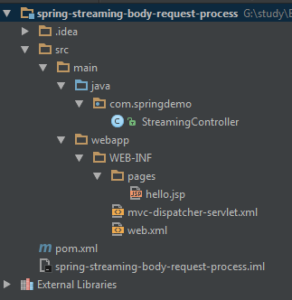

Project structure:

Dependency:

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.springapp</groupId>
    <artifactId>spring-streaming-body-request-process</artifactId>
    <packaging>war</packaging>
    <version>1.0-SNAPSHOT</version>
    <name>spring-streaming-body-request-process</name>

    <properties>
        <spring.version>4.3.0.RELEASE</spring.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.1</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework/spring-orm -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>4.1.4.RELEASE</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-io -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-io</artifactId>
            <version>1.3.2</version>
        </dependency>


        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.4.1</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.4.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-core-asl</artifactId>
            <version>1.9.13</version>
        </dependency>

        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>1.9.13</version>
        </dependency>


    </dependencies>

    <build>
        <finalName>spring-hello-work</finalName>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Java Code:

StreamingController.java

package com.springdemo;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.mvc.method.annotation.StreamingResponseBody;

import java.io.*;

@Controller
@RequestMapping("/")
public class StreamingController {

    @RequestMapping(value = "getSteamingData", method = RequestMethod.GET)
    @ResponseBody
    public StreamingResponseBody getSteamingData() {

        return new StreamingResponseBody() {
            @Override
            public void writeTo(OutputStream outputStream) throws IOException {
                // write...
                int i = 0;
                while (i < 1000) {
                    try {
                        outputStream.write("This is Data In stream".getBytes());
                        i++;
                    } catch (Exception e) {

                    }
                }
            }
        };
    }
}

pages\hello.jsp

<html>
<body>
  <h1>Your request submitted successfully. Request running in back ground.</h1>
</body>
</html>

Configurations:

mvc-dispatcher-servlet.xml

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
         http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <context:component-scan base-package="com.springdemo"/>

    <mvc:annotation-driven>
        <mvc:async-support default-timeout="30000" task-executor="taskExecutor"/>
    </mvc:annotation-driven>

    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <bean id="taskExecutor" class="org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor">
        <property name="corePoolSize" value="5"/>
        <property name="maxPoolSize" value="50"/>
        <property name="queueCapacity" value="10"/>
        <property name="keepAliveSeconds" value="120"/>
    </bean>

</beans>

web.xml

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="
            http://java.sun.com/xml/ns/javaee
            http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">


<display-name>Spring MVC Application</display-name>

    <servlet>
    <servlet-name>mvc-dispatcher</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
        <async-supported>true</async-supported>
  </servlet>

  <servlet-mapping>
    <servlet-name>mvc-dispatcher</servlet-name>
    <url-pattern>/</url-pattern>

  </servlet-mapping>



</web-app>

Output:

spring-streaming-body-download-file

spring-streaming-body-download-file

Download source code

spring-streaming-body-request-process
